Explosion Proof Tow Tractor Manufacturer in China
The all-new Explosion-Proof Tow Tractor represents not just a performance upgrade, but a comprehensive optimization for material handling needs in hazardous environments. It combines high-safety explosion-proof design with powerful towing capability, ensuring stable operation in complex, flammable, and explosive conditions while efficiently completing multi-vehicle towing and continuous transport tasks. Once you truly understand and utilize this explosion-proof tow tractor, you’ll discover its comprehensive advantages in safety, reliability, and operational efficiency—making it virtually irreplaceable.
What Is an Explosion Proof Tow Tractor？

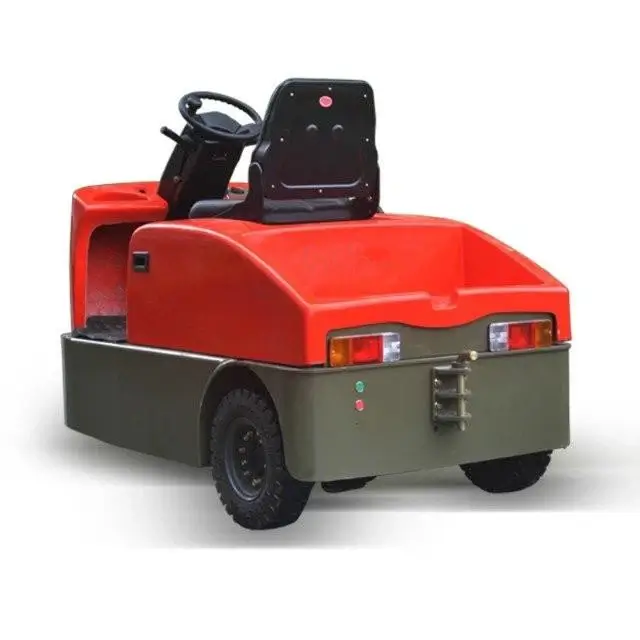

Explosion-Proof Tow Tractor is an industrial vehicle built on a tow tractor chassis with comprehensive explosion-proof design for environments containing flammable gases or dust. It is primarily used to tow material carts, trailers, or other logistics units, performing intra-facility transportation tasks within hazardous zones.
Unlike conventional tow tractors, explosion-proof models do not merely add protective components. Instead, they undergo comprehensive explosion-proof engineering design at the vehicle level, encompassing electrical systems, control systems, and power systems. This ensures the vehicle does not become a potential ignition source during operation.
- Features an original imported controller with an intelligent protection system for safe and reliable performance.
- The AC maintenance-free explosion-proof motor delivers robust power, brushless operation, and lifelong maintenance-free performance for high operational efficiency.
- The high-capacity explosion-proof power supply ensures long-lasting power and extended operating range.
- Explosion-proof rating: Ex d s IIB T4 Gb/Ex tD A21 IP65 T135℃.
- Suitable for towing, transporting, and loading/unloading operations in Zone 1, Zone 2, Zone 21, and Zone 22 explosive gas and dust environments within hazardous industries such as petrochemical, textile, pharmaceutical, food processing, paint manufacturing, and military applications.
- Custom-built heavy-duty explosion-proof tow tractors available upon request.
Features That Increase Your Productivity
The versatile explosion-proof tow tractor is a worthwhile investment in logistics equipment for hazardous materials plants and industrial enterprises. It ensures safety and compliance while helping businesses reduce labor costs, save factory floor space, and significantly enhance towing and transport efficiency.
1. Stable and powerful explosion-proof towing capability reduces transport trips
The explosion-proof tow tractor delivers reliable towing performance, capable of pulling multiple material carts or trailers in a single operation. While ensuring explosion-proof safety, it significantly reduces round trips and enhances overall logistics efficiency.
2. Continuous operation design ensures uninterrupted high-frequency transport
The vehicle structure and critical systems are optimized for continuous operation, making it suitable for frequent, extended-duration towing tasks within facilities. This minimizes downtime and waiting periods, maintaining smooth logistics flow.
3. Compact body and agile maneuverability enhance aisle passage efficiency
The compact vehicle design and agile steering enable efficient navigation through narrow factory aisles and complex routes, minimizing U-turns and repetitive maneuvers to accelerate transport cycles.
4. Integrated explosion-proof system reduces safety intervention costs
Systematic explosion-proof design effectively mitigates risks from electrical sparks, static electricity, and overheating. This reduces downtime, inspection, and accident-handling costs caused by safety hazards, ensuring more stable production.
5. Ergonomic design for enhanced operational efficiency
The intuitive interface and high driving comfort enable operators to quickly master the vehicle and maintain stable performance, reducing efficiency losses and operational errors caused by fatigue.
6. Customizable configurations based on operational requirements to avoid wasted performance
Towing capacity, interface types, and safety features can be tailored to actual logistics needs, ensuring every ounce of performance is utilized in production rather than paying for “unused parameters.”
Application & Hazardous Environments
Petrochemical
Explosive Dust Facilities
Hazardous Chemical Plants
Paint and Coatings
Pharmaceutical Plants
Explosion Proof Tow Tractor Capabilities
By reviewing the key technical specifications of our explosion-proof tow tractor, you can gain a clear understanding of how this equipment will enhance towing efficiency and overall logistics performance in hazardous environments.
| Project | Unit | QSDB20 | QSDB60 | QSDB100 |
| External Dimensions (L × W × H) | mm | 1600×800×1300 | 2000×1000×1300 | 2400×800×1300 |
| Maximum Gradeability (Unloaded/Fully Loaded) | % | 12/10 | 12/10 | 12/10 |
| Minimum turning radius | mm | 2000 | 2500 | 3000 |
| Minimum ground clearance | mm | 80 | 80 | 80 |
| Explosion-Proof Power Supply Unit | V/Ah | 48/250 | 48/330 | 48/400 |
Reach Out to Our explosion-proof equipment Specialists for Support
For material handling in hazardous environments, there is no single explosion-proof forklift that fits all applications. Consult our explosion-proof forklift experts immediately to select the forklift solution that best meets your site’s explosion-proof rating, operating conditions, and safety requirements.
Tailored for your hazardous environment towing applications
Different hazardous environments and material handling conditions impose distinct requirements on explosion-proof towing equipment. Our Explosion Proof Tow Tractors are not off-the-shelf products, but rather tailored configurations based on the customer’s site hazard classification, towing tasks, and usage frequency. This ensures each unit achieves the optimal balance between safety, efficiency, and compliance.
Explosion-Proof Rating and Hazardous Area Customization
Explosion-proof tow tractors can be customized for Zone 1/Zone 2 flammable gas areas or Zone 21/Zone 22 combustible dust areas based on actual operating environments. By integrating corresponding explosion-proof electrical, control, and structural solutions, the equipment ensures long-term, safe, and compliant operation within designated hazardous zones.
Towing Capacity and Load Matching Customization
Towing force, braking systems, and overall vehicle structure can be configured based on material weight, trailer quantity, and transport frequency. This ensures efficient, stable multi-vehicle towing operations without compromising safety.
Towing Interface and Logistics System Customization
Supports customization of multiple towing interfaces and connection types, enabling seamless integration with existing trailers, material carts, or logistics systems. This reduces secondary modification costs and enhances overall in-plant logistics efficiency.
Power System and Safety Configuration Customization
Battery capacity, endurance, and safety/warning systems can be customized based on operational intensity and duration. This ensures stable performance during high-frequency, continuous towing while meeting on-site safety management requirements.
FAQs About Explosion Proof Tow Tractor
1. Can explosion-proof tow trucks pull multiple trailers?
Yes. The specific number depends on towing capacity, load weight, and on-site configuration.
2. Are explosion-proof tow trucks suitable for continuous, high-frequency operations?
Yes. The vehicle design accommodates high-frequency, continuous towing conditions, enabling stable long-term operation.
3. Can the towing capacity of explosion-proof tow tractors be customized?
Yes. Towing capacity can be tailored to actual transportation requirements, ensuring both efficiency and compliance with safety standards.
4. How is explosion protection achieved in explosion-proof tow tractors?
Explosion protection is achieved through comprehensive engineering design, including explosion-proof electrical components, controlled logic systems, safe power supply systems, and anti-static/spark-resistant structural design.
5. Is the explosion-proof tow tractor suitable for indoor use?
Yes. The equipment is primarily designed for indoor environments such as hazardous material workshops, warehouses, and factory logistics corridors.
6. Can interfaces be customized for existing trailer systems?
Yes. Towing interfaces can be tailored to integrate with customers’ existing trailers or logistics systems, ensuring compatibility.
7.Can explosion-proof tow tractors replace manual towing?
Yes. They significantly reduce manual handling intensity and personnel exposure risks, serving as a safety upgrade over manual towing.
8. What information is needed before purchasing an explosion-proof tow tractor?
Provide the hazardous area classification, towing load, trailer type, operating environment, and country/region-specific requirements.
